HHT X3/X4 SOFTWARE UPDATE GUIDE V6.0.0

This document has been written as a guide to aid you in the updating of the HHT Software

Contents

  1. Pre-Update Check list

  2. Step 1: Shutdown Software

  3. Step 2: Running the Upgrader

  4. Step 3: Start the application and configure

  5. Step 4: Update the HHT Label Queue






Pre-Update Check list

This update will clear any stock transaction on the HHT therefore any outstanding transactions Stocktakes, deliveries, orders, etc. must be sent to the Fidelity system before proceeding with this update.

The update will also clear the lookup file, and a new lookup file will be downloaded automatically upon starting the new upgraded software. It is recommended that this is done first thing in the morning or overnight whilst the unit is docked and being charged.

Ensure the remaining battery in the HHT is above 40% - The Battery level can be checked by tapping on the battery icon in the bottom right of the HHT screen.

Step 1: Shutdown Software

1.    Sign on to the HHT with the user: 999 and the password: 999

2.    Press ‘EXIT’

3.    Enter User ID and password again: user: 999 and the password: 999

4.    Software will close.





Step 2: Running the Upgrader

1. Double Tap on the Upgrade icon

Graphical user interface, applicationDescription automatically generated

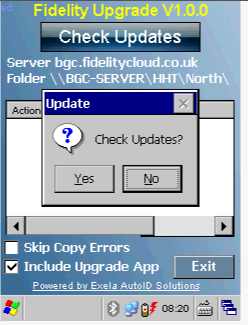

2. Tick Include Upgrade App and then press on Check Updates and press yes to the prompt.

Graphical user interface, text, application, chat or text messageDescription automatically generatedA screenshot of a phoneDescription automatically generated with medium confidence

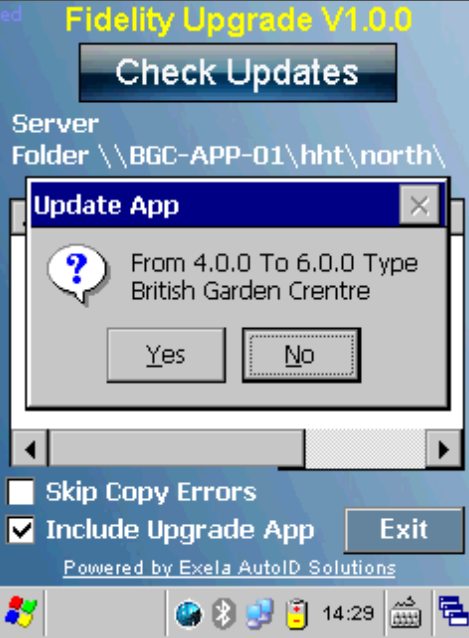

3.Shortly after that you will receive a second prompt as below (depending on the Centre it will say Woodthorpe Hall or BGC South). Please press Yes. A screenshot of a computer updateDescription automatically generatedGraphical user interface, text, application, chat or text messageDescription automatically generated

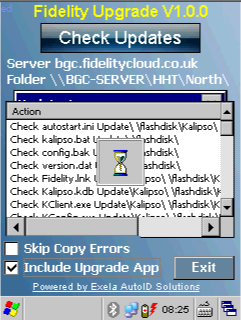

4. This will then start to download the latest config. If an error occurs, please try the download for a second time. If an error occurs again, please contact Fidelity 01482 223556 option 3.

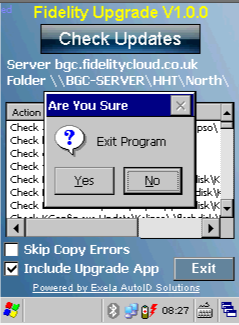

If no error occurs, you will get the below prompt. at this point, please press OK and then exit the software by pressing Exit and Yes on the prompt.

Graphical user interface, applicationDescription automatically generatedA screenshot of a phoneDescription automatically generated with medium confidence



Step 3: Start the application and configure

  1.  Double tap on the icon named ‘Fidelity’

Graphical user interface, applicationDescription automatically generatedA screenshot of a computerDescription automatically generated

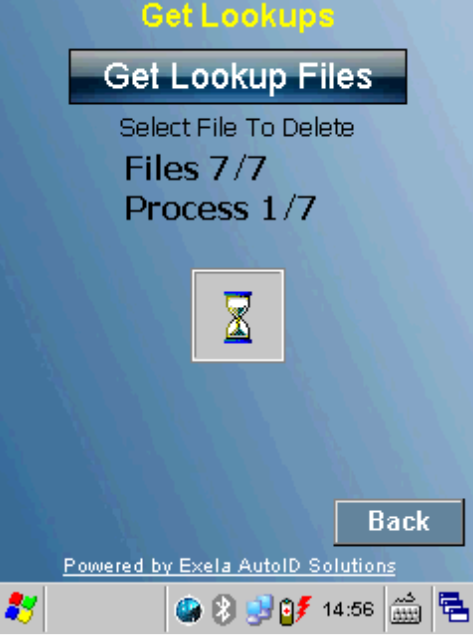

Once started the application will download the new lookup file automatically.

This process can take over 30mins to complete.

The processing of the lookups will complete faster if the HHT is placed in the charging dock and the screen is kept on during the process.


Step 4: Update the HHT Label Queue

 1. Sign on to the HHT with the user: 999 and the password: 999 and Click on the menu – ‘FILES’

Graphical user interfaceDescription automatically generated


2. Once in the files menu tap the words ‘Powered by Exela AutoID Solutions’

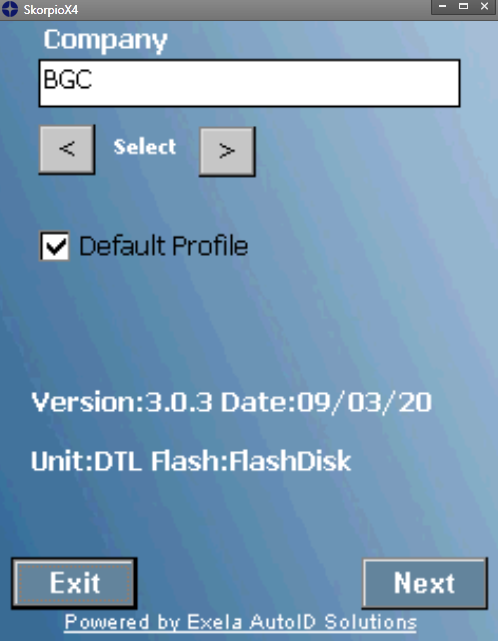

If done correct you will see the following screen:


Graphical user interface, applicationDescription automatically generated


3. Tap ‘Next’ 6 times until you see the following screen:


Graphical user interfaceDescription automatically generated with low confidence

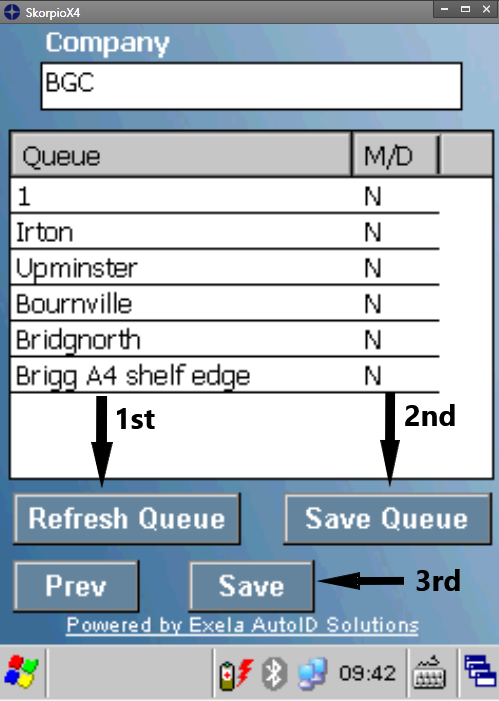

4:

Tap ‘Refresh Queue’ – Wait for list to refresh.

Tap ‘Save Queue’ – This saves the updated label queue

Tap ‘Save’

Tap ‘Exit’

Tap ‘Back’

Tap ‘Logout-999’


This is the switchover process completed you can now sign on using 123 and use the device as normal
