Honeywell HF680 Setup Guide

Enter/Exit Configuration -

Recall Defaults -

Defaults are shown with *

Operating Modes - Use defaults. No need to change unless the customer says that the IR trigger mode is scanning Barcodes in error.

USB Serial -

Baud Rate - 115,200 Baud can be used so no need to change. Match in GPoS Utility Device Set-up.

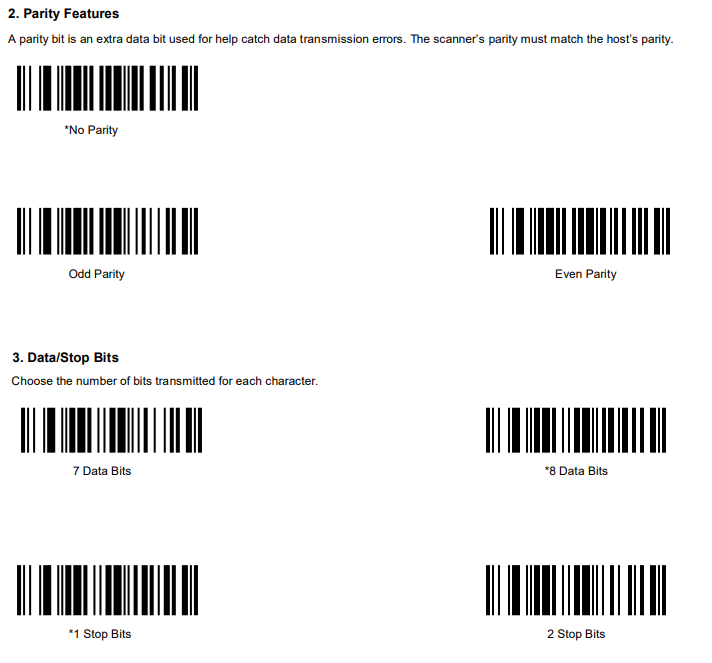

Parity Features - Use defaults. No need to change. Match in GPoS Utility Device Set-up.

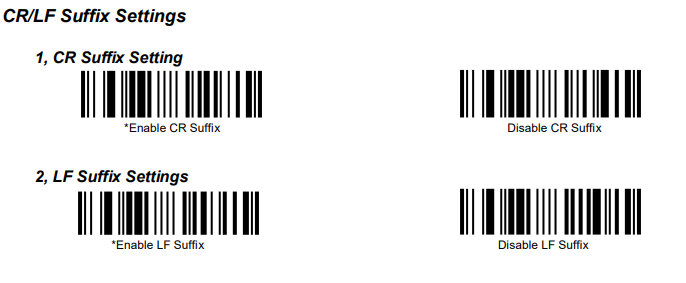

CR/LF Suffix Setting - Disable LF Suffix.

Enter/Exit Configuration -
