TEC B-SA4T 107x25 Double Label Setup

TEC B-SA4T 107x25 Double Label Setup

Windows Printer Driver

Create a Label Stock

1. Click Start > Windows System > Control Panel, or click Start and type "Control Panel", then click on the icon that appears
Start Menu - Search for Control Panel
2. Click Devices and Printers
Control Panel - Devices and Printers
3. Right-click TEC B-SA4T and click Printing Preferences

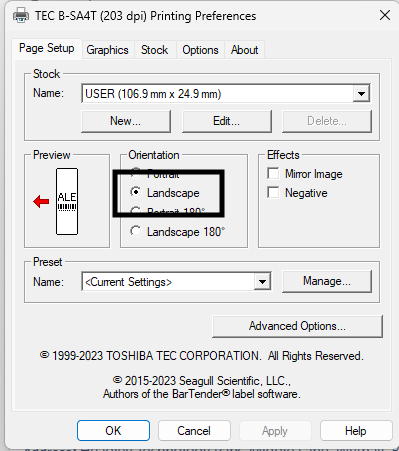

TEC B-SA4T Printing Preferences
4. Click New... in the Stock section on the Page Setup tab
Printing Preferences - New Stock
5. Enter an easy to remember name for the label such as "Fidelity" or "107x25 Double" and set the measurements as below:
  • Width: 106.9mm
  • Height: 24.9mm
  • Left Liner Width: 1.3mm
  • Right Liner Width: 1.3mm
Click OK
New Stock - Fidelity 107x25
5. Click Advanced Options... and set the options on the Printing Position tab as below:
  • Horizontal Offset: 0.0mm
  • Vertical Offset: 0.0mm
Leave all other options as default and click OK
Advanced Options - Printing Position
6. Click Stock and set the options as below:
  • Print Method: Thermal Transfer
  • Sensor: Transmissive
  • Label Gap: 3.0mm
  • Issue Mode: Batch Mode (with Back Feed)
  • Post Print Action: None
Leave all other options as default and click OK
Printing Preferences - Stock

Set a Print Preset

We recommend setting a Preset so that the above settings can be quickly reapplied if they are accidentally changed.
1. Click Manage... in the Preset section on the Page Setup tab
Page Setup - Manage Presets
2. Click New and enter a suitable Name for the Preset such as "Fidelity" or "107x25 Double" New Preset - Fidelity
3. Click OK - the new Preset will appear and be applied
Page Setup - Fidelity Preset
