Printing Labels from Cloud Hosted Total Control Premier

Printing Labels from Cloud Hosted Total Control Premier

The Universal Print Driver for Total Control Premier produces labels as PDF files which can then be printed using a printer attached to the computer; the printer can be physically attached or can be a network printer. The instructions below detail how to print the labels to the relevant label printer, using the required label stock, and assume that the required label printer and stock have been previously configured. The TEC B-SA4T label printer using 107x25 double label stock is used as an example here.

1. Click to view the PDF when Total Control Premier reports that the queue has been printed successfully

The label PDF will open in the web browser
Click to view PD

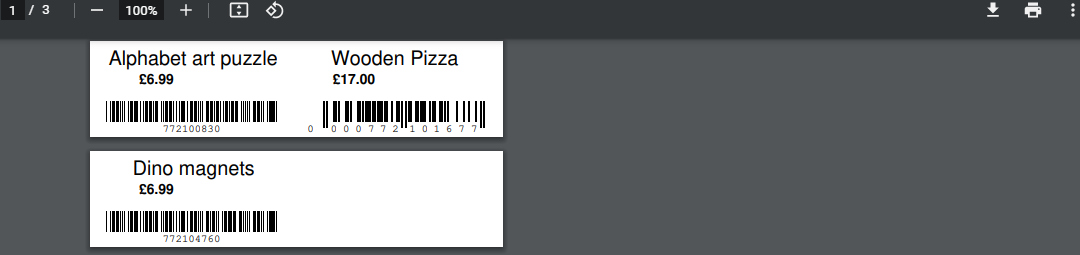

Label PDF in web browser
2. Click Print and set the print options as below:
  • Destination: The name of the label printer attached to the computer
  • Paper size: The name of the label stock added to the label printer driver
  • Scale: Fit to paper
Leave all other options as default and click Print

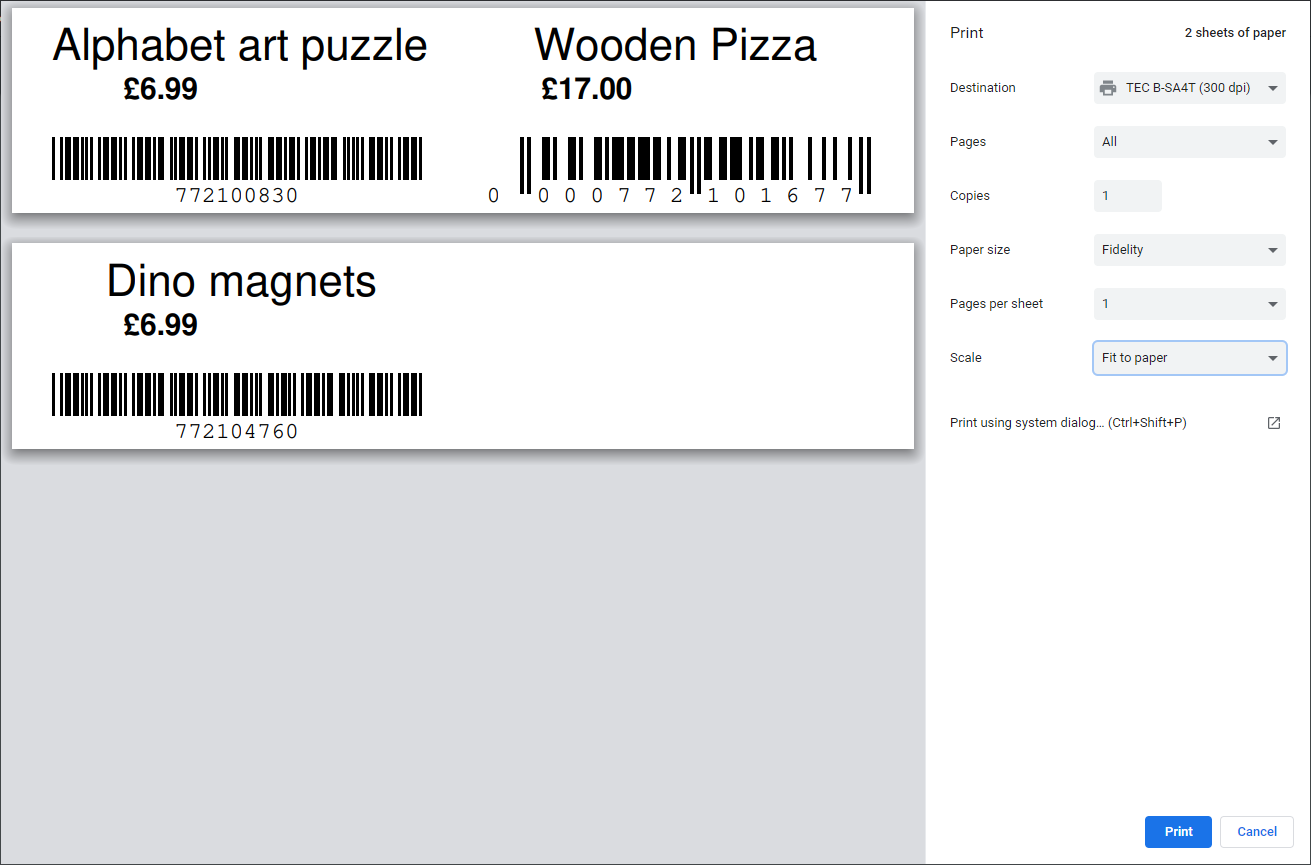

TEC B-SA4T Print Dialog
