Tablet Setup Guide
These settings apply to Windows 10 - different settings may
apply or may be found in different areas/menus in other versions of
Windows.
This is a guide to recommended settings for tablets to be used with
GPoS, both for ease of use and smooth operation, and to manage power
and WiFi connectivity. They're implemented through a combination of
Control Panel options, Windows settings and Local Group Policy
settings.
Local Group Policy

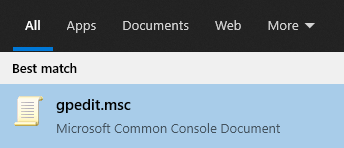

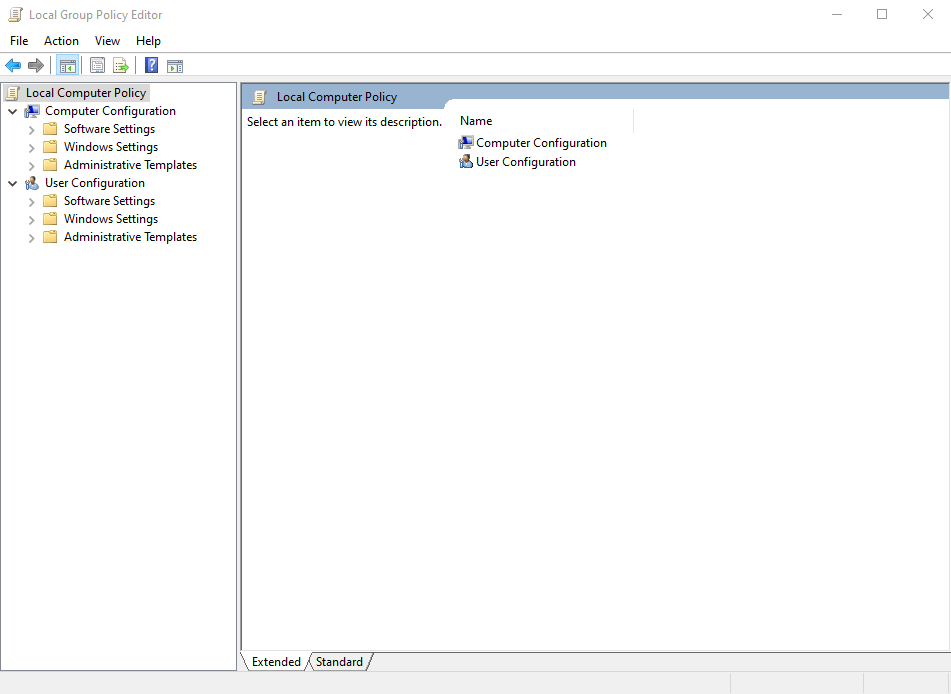

Click Start and type "gpedit.msc", then click to open the
Local Group Policy Editor.
Computer Configuration
Click Local Computer Policy > Computer Configuration
Sleep Settings
Click Administrative Templates > System > Sleep
Settings
| Setting | Value |
| Allow applications to prevent automatic sleep (on battery) | Enabled |
| Allow applications to prevent automatic sleep (plugged in) | Enabled |
| Require a password when a computer wakes (on battery) | Disabled |
| Require a password when a computer wakes (plugged in) | Disabled |
| Allow network connectivity during connected-standby (on battery) | Enabled |
| Allow network connectivity during connected-standby (plugged in) | Enabled |
Lock Screen
Click Administrative Templates > Control Panel > Personalization
| Setting | Value |
| Do not display the lock screen | Enabled |
Settings
Control Panel

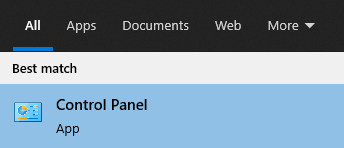

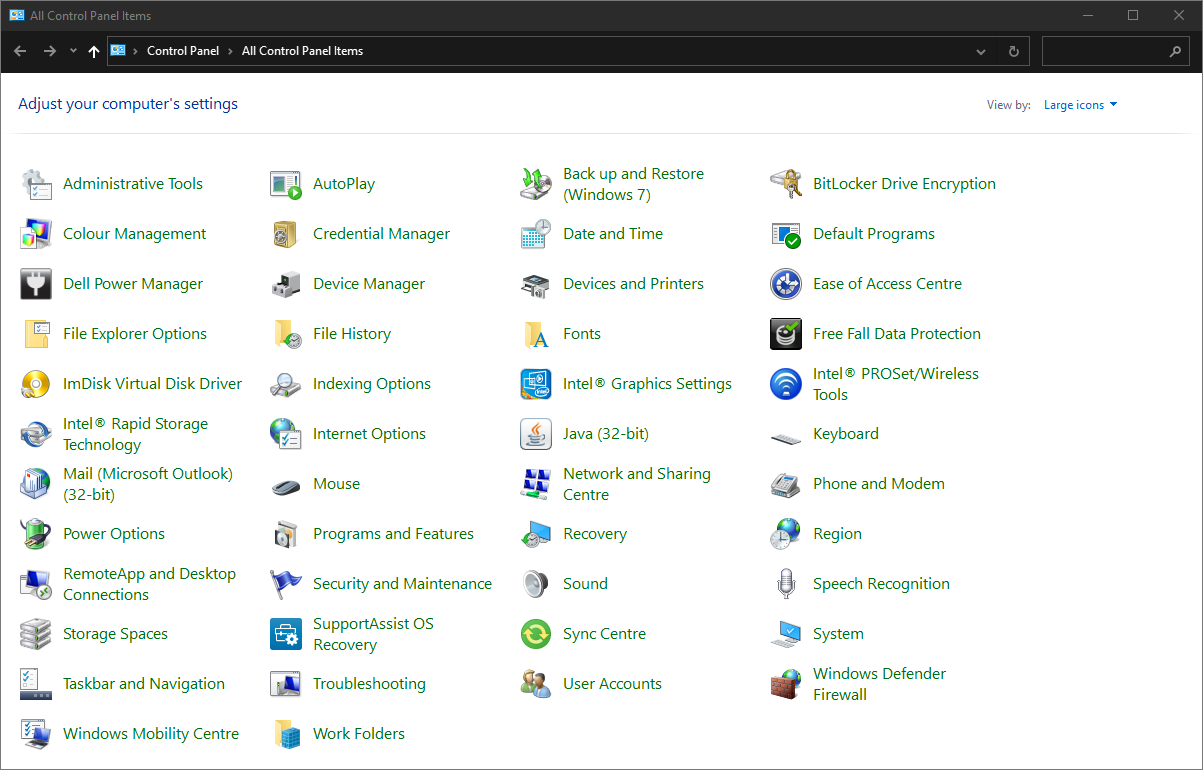

Click Start and type "Control Panel", then click to open
Control Panel.
Power Options
| Setting | Value |
| Turn off the display (On battery) | 5 minutes |
| Turn off the display (Plugged in) | 10 minutes |
| Put the computer to sleep (On battery) | Never |
| Put the computer to sleep (Plugged in) | Never |
System
Click Start > Settings > System
Display
| Setting | Value |
| Orientation | Landscape |
| Rotation lock | On |
Notifications & Actions
| Setting | Value |
| Add or remove quick actions | Remove all quick actions apart from Network |
| Notifications | Turn off all notifications |
| Get notifications from these senders | Turn off all notifications |
Tablet Mode
| Setting | Value |
| When I sign in | Use desktop mod |
| When this device automatically switches tablet mode on or off | Don't ask me and don't switch |
| Hide app icons on the taskbar in tablet mode | Off |
| Automatically hide the taskbar in tablet mode | Off |
Personalization
Click Start > Settings > Personalization
Start
| Setting | Value |
| Show more tiles on Start | Off |
| Show app list in Start menu | On |
| Show recently added apps | Off |
| Show most used apps | Off |
| Use Start full screen | On |
| Show recently opened items in Jump Lists on Start menu or the taskbar | Off |
With Start full screen, pin the Fidelity GPoS and Fidelity
GPoS Utility shortcuts to Start and/or Taskbar.
