Skorpio HHT Docks

Skorpio HHT Docks & Modules

Skorpio X3/X4 Dock

The Skorpio X3/X4 Dock charges the battery of the Skorpio, both whilst the battery is connected to the terminal and the terminal is inserted into the dock, and also on its own in a separate slot at the back of the dock. The dock has ports at the back for the power adaptor, a USB Type B connection and a 9-pin RS232 connection. A USB A to B cable will be needed to connect the dock to a Windows PC.

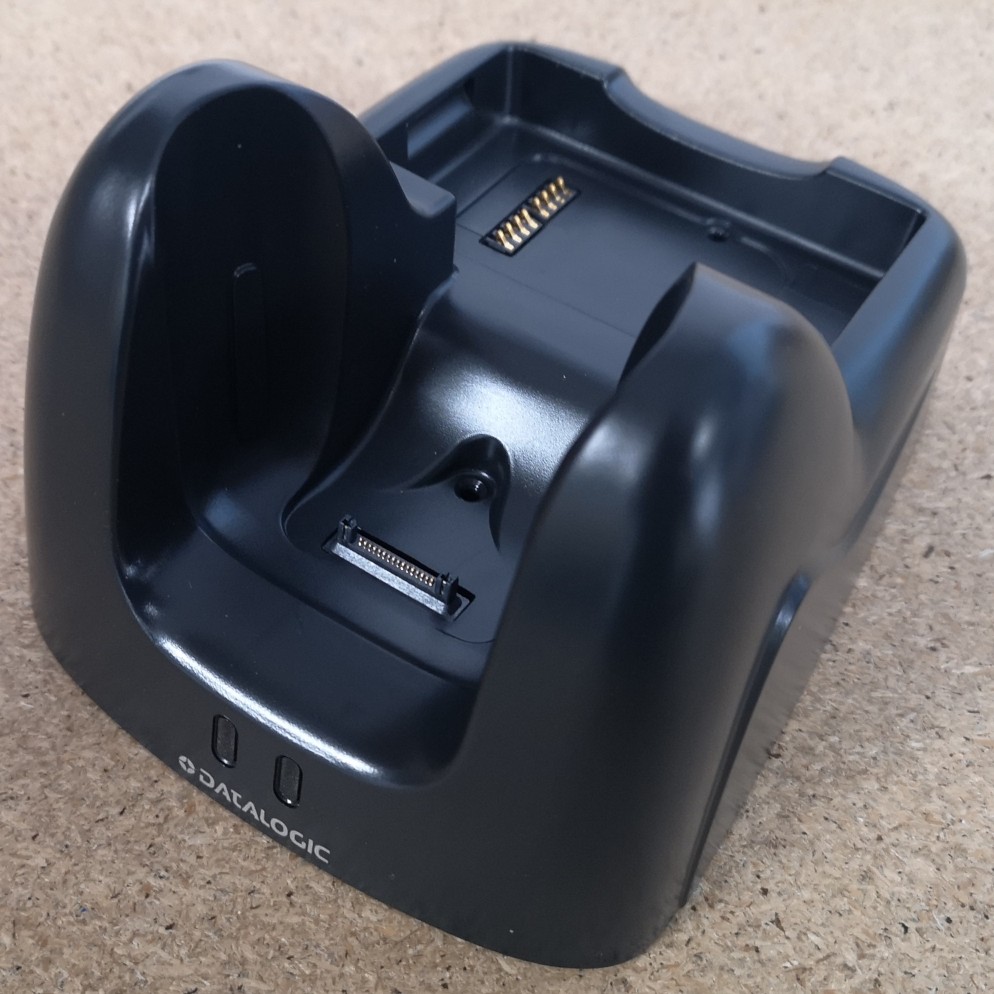

Front View of DockFront view of the Dock showing Power and Charging indicators with the Battery Slot at the back

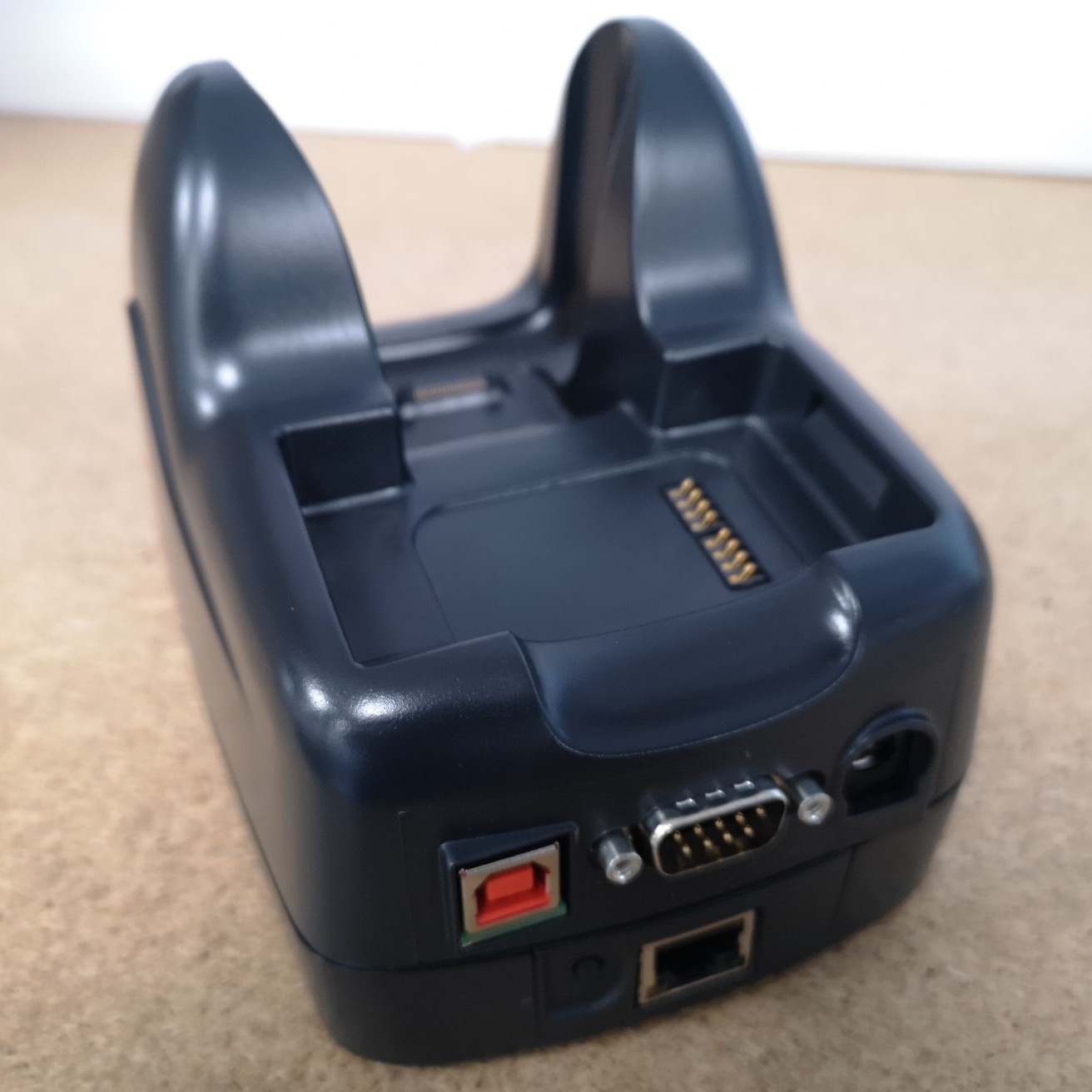

Back view of the Dock showing USB B, RS232 and Power connectors


Ethernet Module

This attaches to the bottom of the Charging Cradle, and allows the Skorpio to communicate over a wired network. The ethernet port is found at the back of the module, and an orange light on the front of the module indicates network activity.

Back View of Ethernet ModuleBack view of the Ethernet Module showing the RJ45 port and dock connector

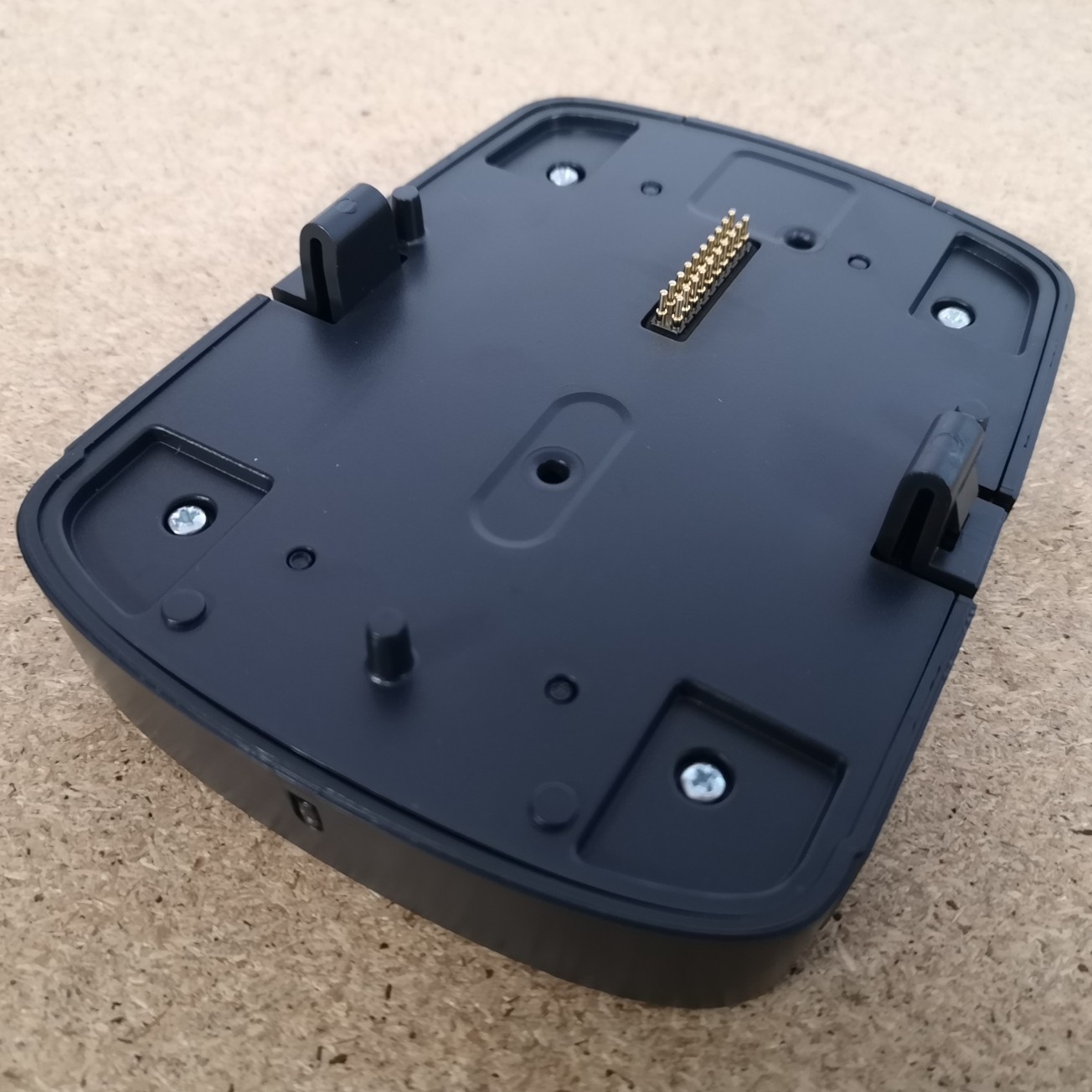

Front View of Ethernet ModuleFront view of the Ethernet Module showing the activity indicator and dock connector


You will need to remove the label on the bottom of the Dock to expose the connection port. Once the port is accessible, sit the Dock on top of the Ethernet Module, ensuring that the connector slots into the connection port and the clips on either side are holding the two parts together firmly.

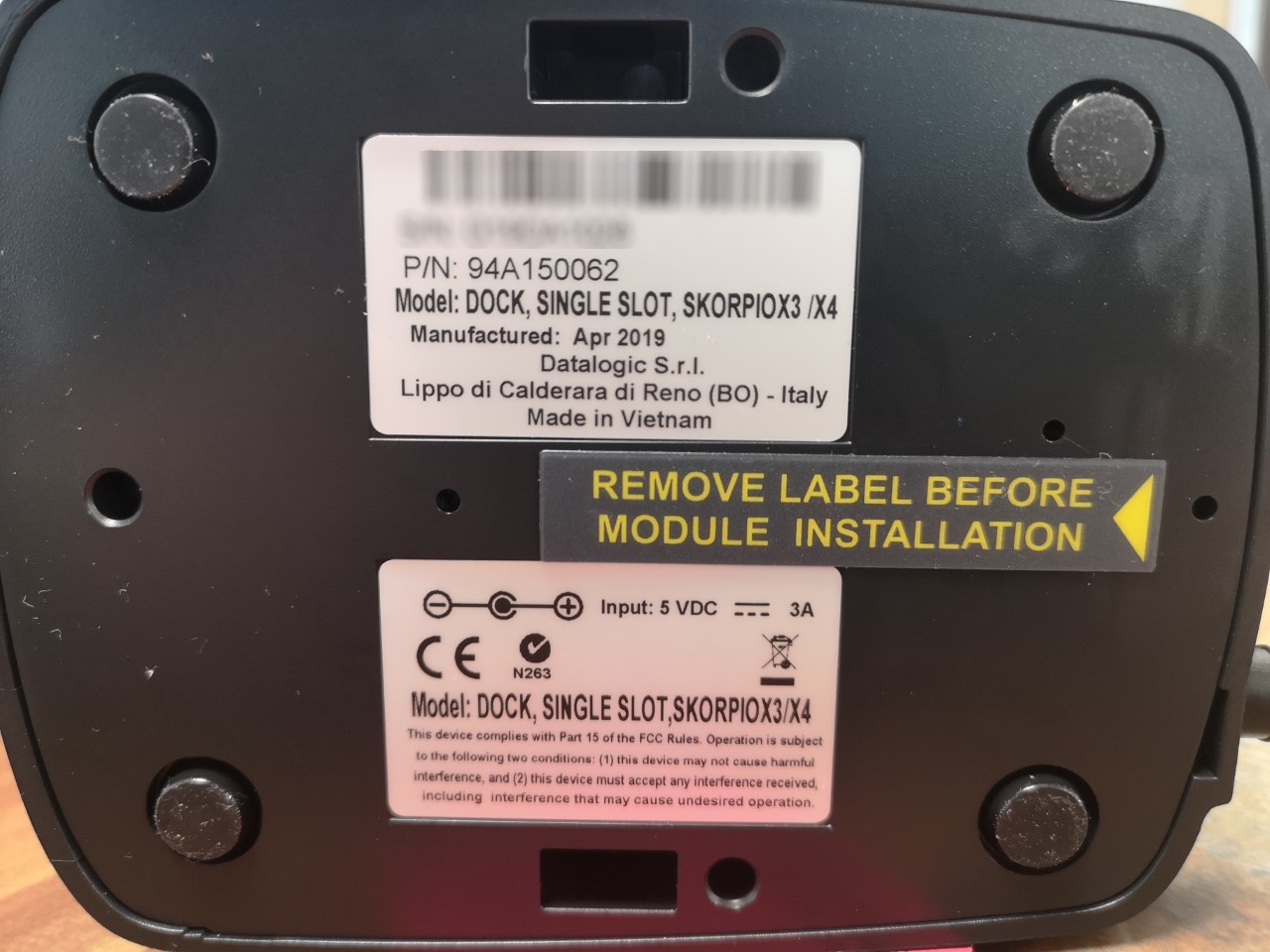

Underside View of DockUnderside view of the Dock showing the label to be removed

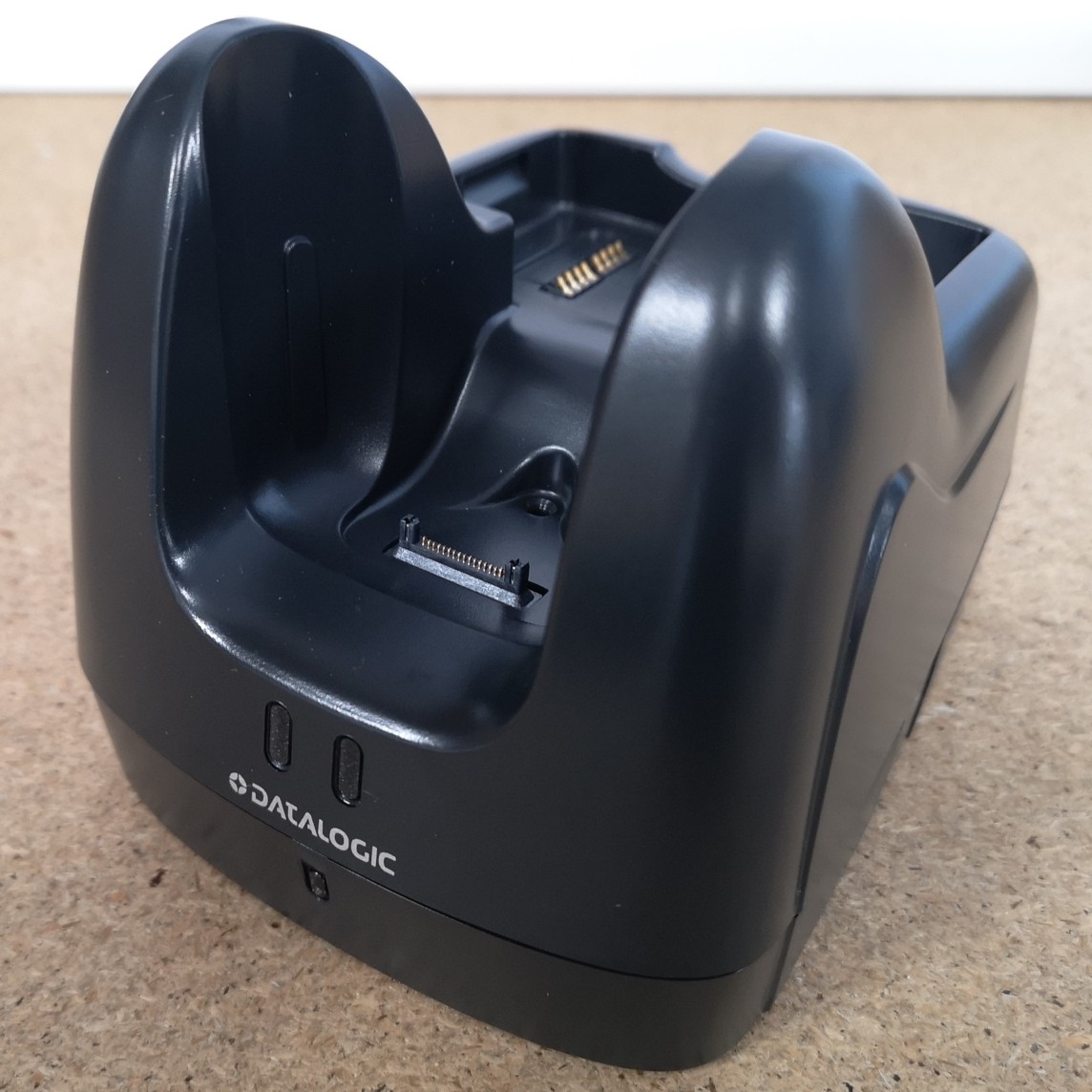

Front View of Dock and Ethernet ModuleFront view of the connected Dock and Ethernet Module

Back View of Dock and Ethernet ModuleBack view of the connected Dock and Ethernet Module
